Ultrasound for Research
Ultrasound research platforms with open data access
Compact USB systems that run on an ordinary Windows PC and give you the data behind the image — beamformed RF, raw channel data and hardware synchronisation — together with free tools to start working on day one.
64 channels
Raw RF data on ArtUs USS-2H
5 access points
Along the signal-processing chain
4 languages
C++, MATLAB, Python, LabVIEW
450+
Publications with TELEMED systems
Choose your platform
Three platforms for RF-based research, plus portable systems for synchronised imaging studies.
Beamformed RF dataArtUs EXT-1H / EXT-2H
A complete color Doppler system that also streams real-time beamformed RF data to your software.
- Real-time RF data with the RF module
- New: RF data in color flow and PW Doppler modes
- Parallel beamforming, one or two transducer ports
- Strain elastography and I/O synchronisation as options
- Free tools for C++, MATLAB, Python and LabVIEW

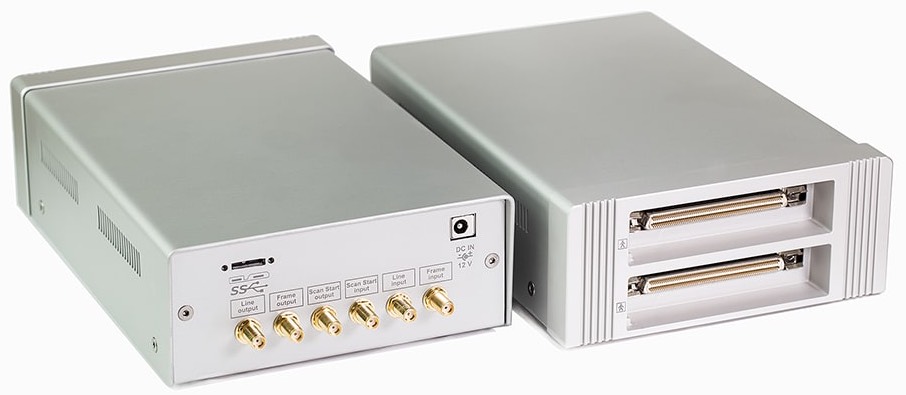

Channel RF dataArtUs USS-2H
The research system for the deepest level of access — from individual receive channels to fully programmable transmission — at a fraction of the cost of large research platforms.
- Raw RF data from up to 64 receive channels
- Five data access points along the processing chain
- Programmable delays, apertures and 3-level pulses with PWM
- I/O synchronisation as standard
Coming soon · CE/FDA pendingCompact researchArtUs Compact
The ArtUs imaging engine in a fanless, USB-C enclosure — for research outside the lab.
- Color Doppler on a single USB-C cable
- RF data access and strain elastography as options
- I/O synchronisation as an option
Research features at a glance
| Research feature | ArtUs EXT-1H/2H | ArtUs USS-2H | ArtUs Compact | MicrUs EXT-1H | SmartUs |
|---|---|---|---|---|---|
| Beamformed RF data | Option | Standard | Option | — | — |
| Color flow and PW Doppler RF data | Option* | — | — | — | — |
| Raw channel RF data | — | Standard | — | — | — |
| Programmable transmission | — | Standard | — | — | — |
| I/O synchronisation | Option | Standard | Option | Option | Option |
| Strain elastography | Option | — | Option | — | — |
| SDK for your own software | ✓ | ✓ | ✓ | ✓ | ✓ |
Standard — included · Option — available on request · ✓ available · — not available.
* With the RF module and ArtUs RF Data Control II v2.3.0 or later.
Options and tools for research
Beamformed RF data
Real-time RF lines from ArtUs, recorded to disk or processed live — the basis for tissue characterisation and new biomarkers. Now also for color flow and spectral Doppler.
Learn moreChannel RF data
Per-channel raw data and programmable transmission on ArtUs USS-2H, with a C++ reference application and full source code.
Learn moreI/O synchronisation
Line, frame and scan-state signals to run ultrasound in step with motion capture, EMG, force plates or robots.
Learn moreTELEMED SDK
Control the system and read frames, lines and parameters from your own Windows or Android application.
Request the SDKResearch tools

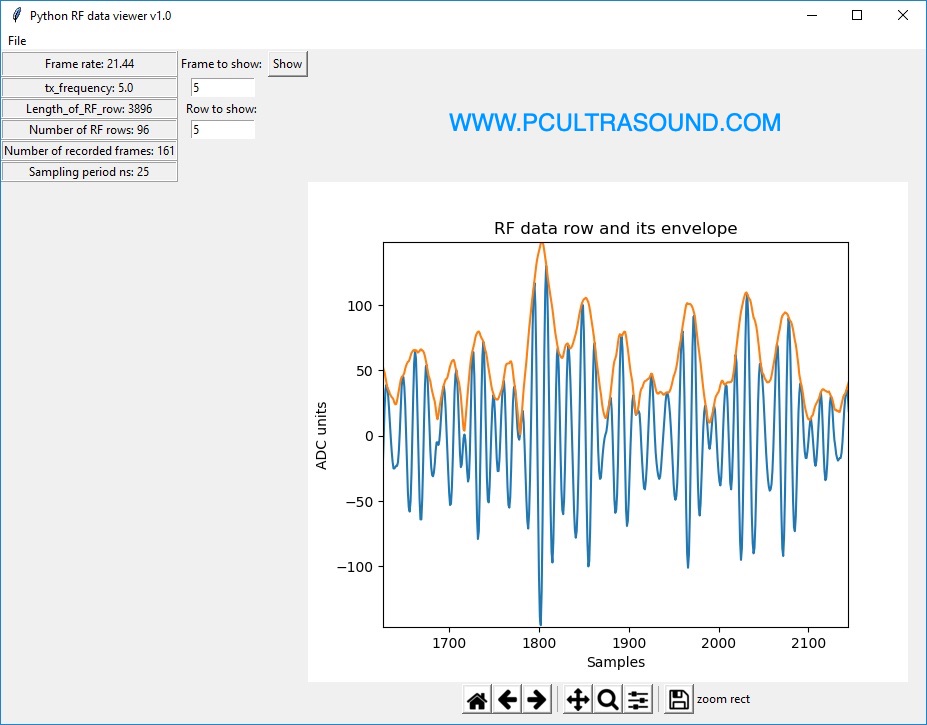

Free utilities and sample code for MATLAB, Python, LabVIEW and C++.
Download toolsFive levels of access
From exporting measurements to programming individual transmit channels — find the level that fits your study.

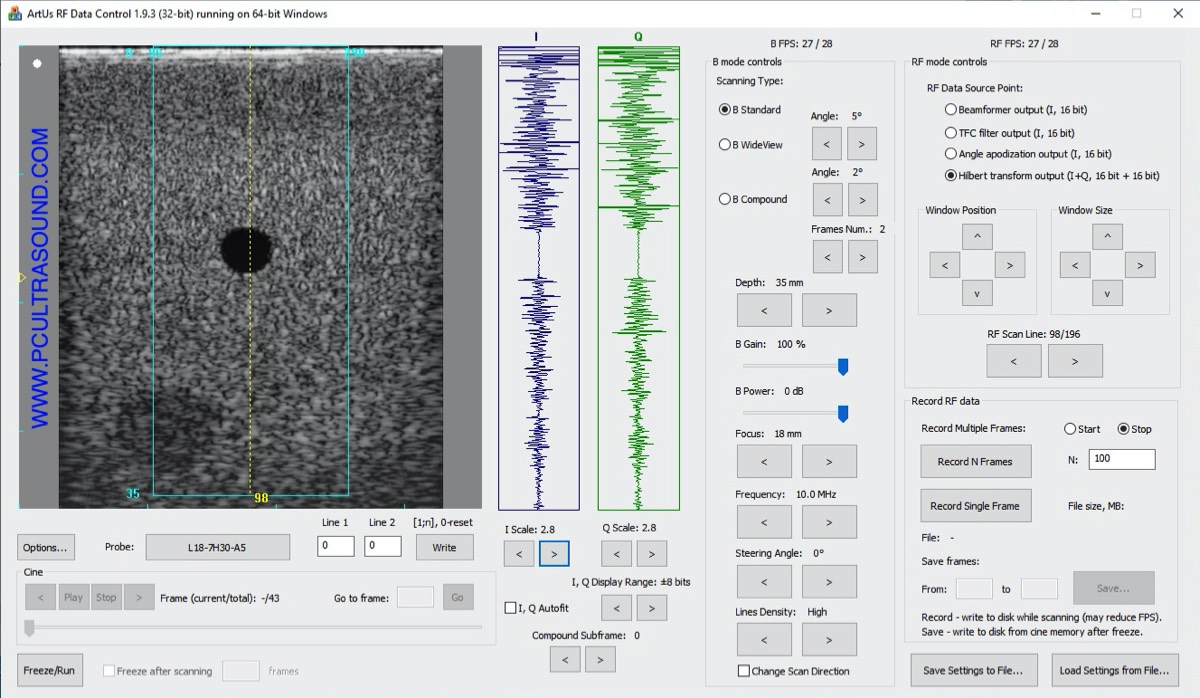

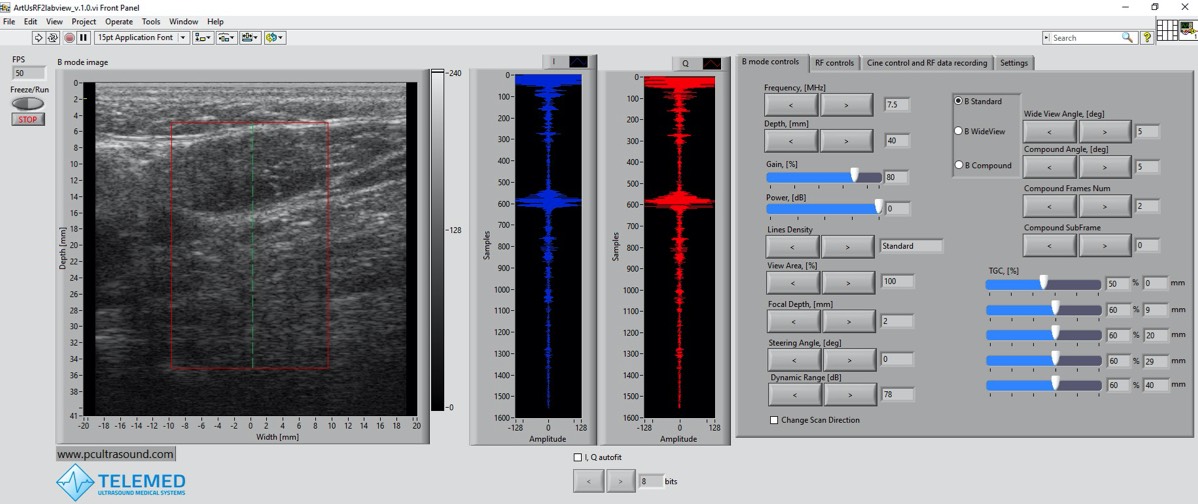

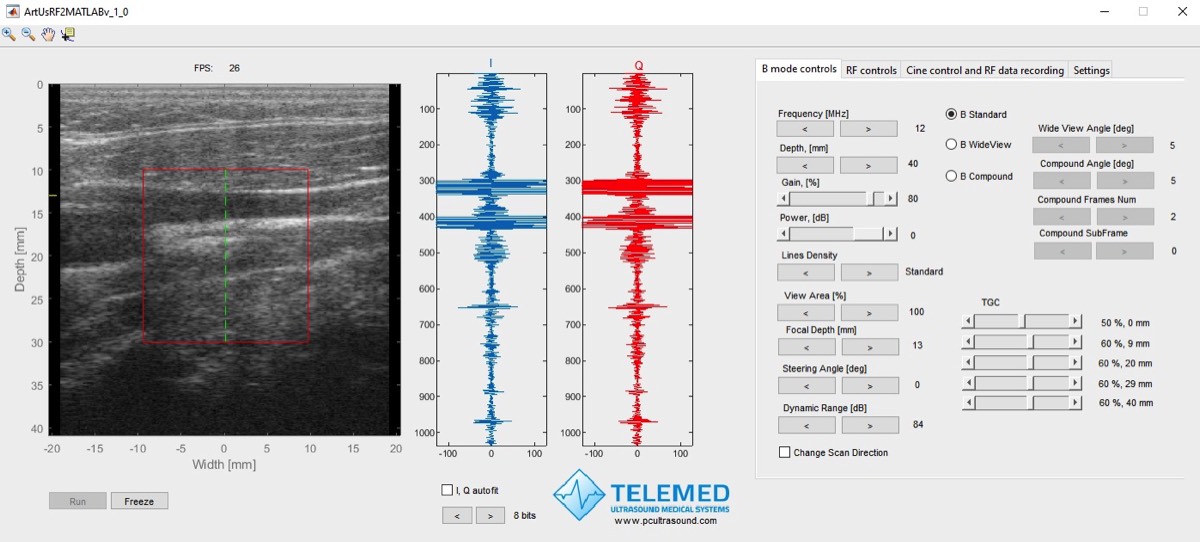

Read the introductionReady-made software, open source code
Each RF platform comes with working applications you can run, study and modify.
Planning an ultrasound experiment?
Tell us about your study — we will help you choose the platform, transducers and options.
