    Color Doppler Digital Ultrasound System

    The SmartUs is a new innovative generation of high performance PC-based ultrasound Echo Color system.
    Its open architecture platform includes the last advancements of TELEMED Ultrasound Beamforming Technology.
    Scanning modes:

    • B, B+B, 4B, B+M, M
    • CFM Color Flow Mapping
    • PDI Power Doppler
    • DPDI Directional Power Doppler
    • PW Pulsed Wave Spectral Doppler
    • CW Continuous Wave Spectral Doppler
    • HPRF High Pulse Repetition Frequency
    • Duplex (B+PW/CW)
    • Triplex B+Color Doppler+PW/CW
    Available with one tor three probe ports.
    The system supports a wide range of transducers of new generation with high density elements, wideband and multi-frequency from 1.0 MHz to 18.0 MHz:
    • Convex
    • Microconvex
    • Linear
    • Sector Phased Array
    • Endocavitary
    In the SmartUs are included the latest technological innovations developed by TELEMED:
    • Spatial Compound Imaging
    • B-Steer Imaging
    • WideView Imaging
    • iTHI - Tissue Harmonic Imaging with Pulse Inversion technology
    • High-speed software image Processing
    • Digital Doppler Multi-Beam Processing
    • One-Touch Image Optimization
    • Advanced Speckle Reduction Imaging
    • RAW-Data
    • Image Enhancement
    The high PRF and the Digital Doppler multi-beam processing allow Color, Power and Spectral Doppler examinations, with very high sensitive and frame rate.
    The SmartUs is equipped with Echo Wave II software, continuously updated through implementations and upgrades freeware downloadable from the Internet.

    Stacks Image 10
    SmartUs EXT-1M Kit includes:

    • SmartUs EXT-1M beamformer
    • ultrasound transducer (optional)
    • Type-B to Type-A USB 2.0 cable
    • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
    • AC power cable
    • software, assembly and set-up manual, operation manual (supplied on USB memory)


    Detailed system specifications and comparison with other systems see here
    Stacks Image 20
    SmartUs EXT-3M Kit includes:

    • SmartUs EXT-3M beamformer
    • ultrasound transducer (optional)
    • USB cable
    • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
    • AC power cable
    • software, assembly and set-up manual, operation manual (supplied on USB memory stick)


    Detailed system specifications and comparison with other systems see here
    smartus_transducers
    SmartUs compatible transducers

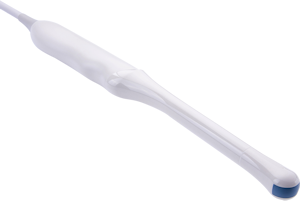

    Stacks Image 30

    MCV9-5R10N-3
    Frequency: 5-9 MHz
    Radius: 10mm
    Use: transrectal, transvaginal

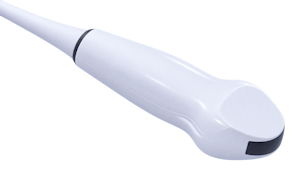

    Stacks Image 46

    MC10-4R12N-4
    Frequency: 4-10 MHz
    Radius: 12mm
    Use: small parts, paediatrics, veterinary

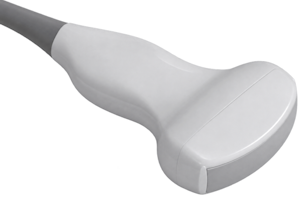

    Stacks Image 71

    C7-3R50NI-5
    Frequency: 3-7 MHz
    Radius: 50mm
    Use: abdominal, obstetrics, paediatrics

    Stacks Image 90

    C5-2R60NI-5
    Frequency: 2-5 MHz
    Radius: 60mm
    Use: abdominal, obstetrics, paediatrics

    Stacks Image 98

    C5-2R60HI-5
    Frequency: 2-5 MHz
    Radius: 60mm
    Use: abdominal, obstetrics, paediatrics

    Stacks Image 106

    L15-6L25N-4
    Frequency: 6-15 MHz
    Scan width: 25.6mm
    Use: paediatrics, small parts, vascular

    Stacks Image 125

    L18-10L30H-4
    Frequency: 10-18 MHz
    Scan width: 28.8mm
    Use: paediatrics, small parts, vascular

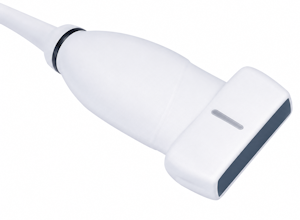

    Stacks Image 325

    L12-5L40N-4
    Frequency: 5-12 MHz
    Scan width: 38.4mm
    Use: paediatrics, small parts, vascular, veterinary

    Stacks Image 141

    L15-7L40H-5
    Frequency: 7-15 MHz
    Scan width: 38.4mm
    Use: paediatrics, small parts, vascular, veterinary

    Stacks Image 358

    L13-4L55H-4
    Frequency: 4-13 MHz
    Scan width: 54.91mm
    Use: small parts, vascular

    Stacks Image 162

    P5-1L15SI-6
    Frequency: 1-5 MHz
    Use: cardiac, abdominal

    Stacks Image 321

    P8-3L10SI-6
    Frequency: 3-8 MHz
    Use: paediatric cardiac, paediatric abdominal

    Stacks Image 222

    BIPC8-4R10N-4, BIPL10-4L60N-4
    rectal biplane (two heads in same handle)
    compatible with SmartUs EXT-3M only

    Stacks Image 311

    BIPC9-4R10H-4, BIPL12-5L70H-4
    rectal biplane (two heads in same handle)
    compatible with SmartUs EXT-3M only

    Ultrasound images

    More SmartUs ultrasound video/images you can see here.
