360 Degree

Hover your mouse over MicrUs EXT-1H image to see 360 degree view.

MicrUs is a new generation of a USB-powered pocket-size point of care ultrasound imaging system. It offers ultrasound screening in B, M, B + M, 4B, PW Doppler, PW Doppler + B (duplex) modes together with Speckle Reduction Processing, Trapezoid and Spatial compound imaging.
Various transducers can be connected and disconnected in second thanks to advanced probe recognition technology. MicrUs is a fanless device so it’s well suited for ultrasound-guided procedures. Personal ultrasound scanner can be fully controlled from a remote computer providing possibilities for telemedicine and educational purposes.
Software Development Kit available to scientific organisations and industry enables advanced manipulation with the ultrasound data and customization of the user interface.

MicUs is available in following modifications:
  • I/O module (optional), hardware modification, provides up to 2 trigger signals to/from external equipment through additional connectors
Stacks Image 10
MicrUs EXT-1H Kit includes:

  • MicrUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Mini-B to Type-A USB 2.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)
Detailed system specifications and comparison with other systems see here
micrus_transducers
MicrUs compatible transducers
Stacks Image 23

MCV9-5R10S-3
Frequency: 5-9 MHz
Radius: 10mm
Scan depth: 30-150 mm
transrectal, transvaginal

Stacks Image 31

MC10-5R10S-3
Frequency: 5-10 MHz
Radius: 11mm
Scan depth: 30-150 mm
small parts, vascular, veterinary

Stacks Image 39

MC4-2R20S-3
Frequency: 2-4 MHz
Radius: 20mm
Scan depth: 60-230 mm
abdominal, cardiac, veterinary

Stacks Image 229

MC8-4R20S-3
Frequency: 4-8 MHz
Radius: 20mm
Scan depth: 30-150 mm
abdominal, pediatrics, cardiac, veterinary

Stacks Image 237

C5-2R60S-3
Frequency: 2-5 MHz
Radius: 60mm
Scan depth: 90-230 mm
abdominal, obstetrics, pediatrics, small parts

Stacks Image 245

L15-6L25S-3
Frequency: 6-15 MHz
Scan width: 25.6mm
Scan depth: 15-45 mm
obstetrics, pediatrics, small parts

Stacks Image 91

L12-5L40S-3
Frequency: 5-12 MHz
Scan width: 39.94mm
Scan depth: 20-70 mm
obstetrics, pediatrics, small parts

Stacks Image 191

L12-5N40-M3
Frequency: 5-12 MHz
Scan width: 38.4mm
Scan depth: 20-70 mm
obstetrics, pediatrics, small parts
temporarily unavailable

Stacks Image 99

LV8-4L65S-3
Frequency: 4-8 MHz
Scan width: 64mm
Scan depth: 40-120 mm
veterinary

Note. The listed transducers are compatible with MicrUs EXT-1H, rev.C, D and E only. If you wish to purchase a transducer for previous versions, please contact us.

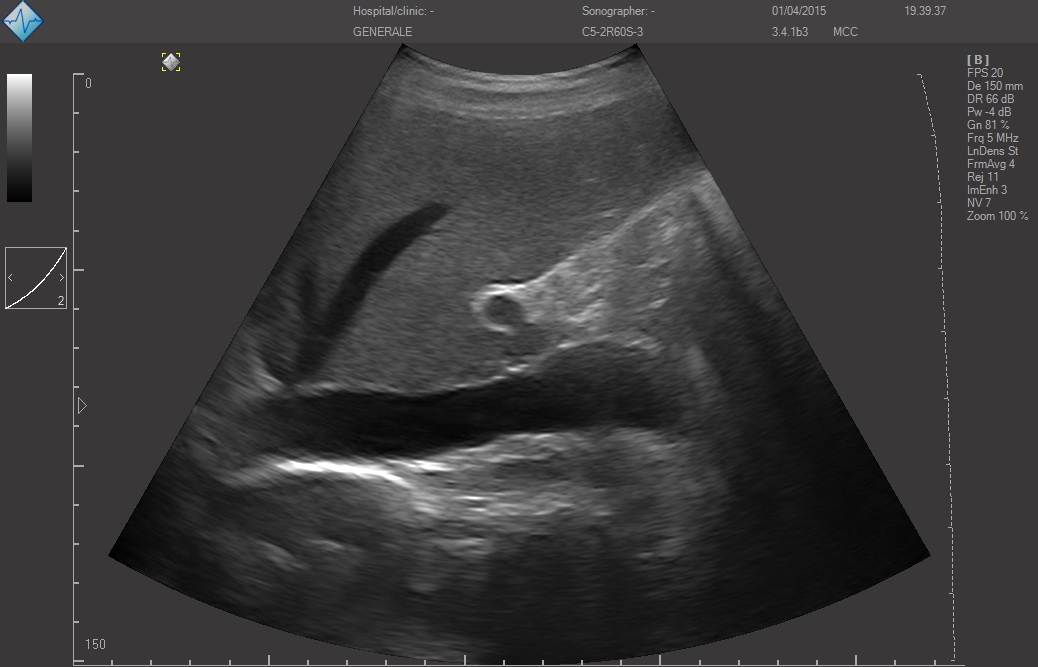

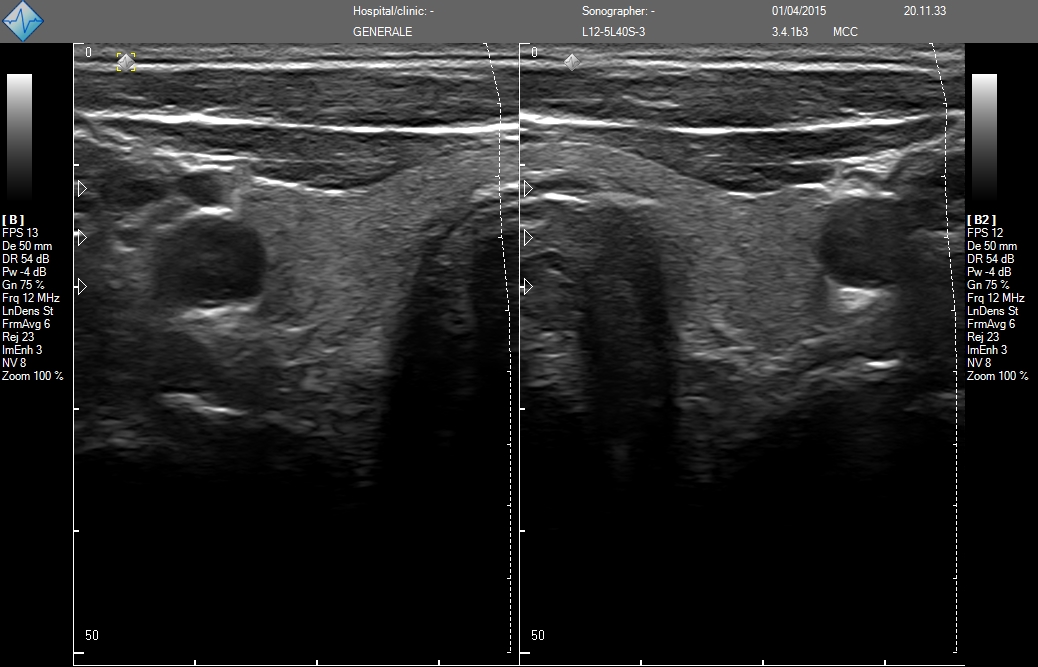

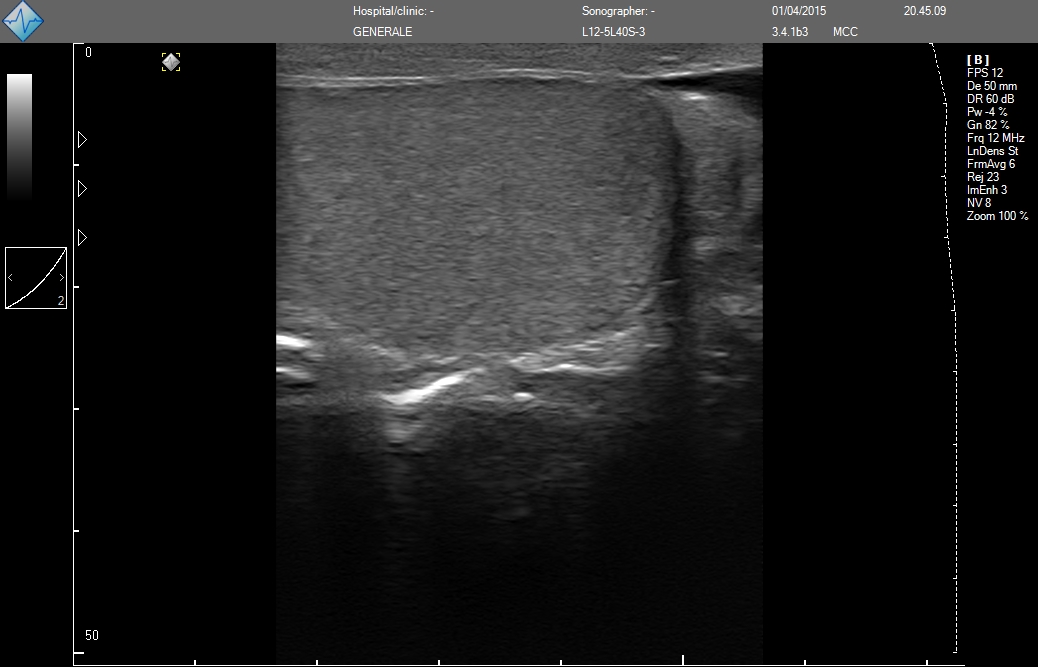

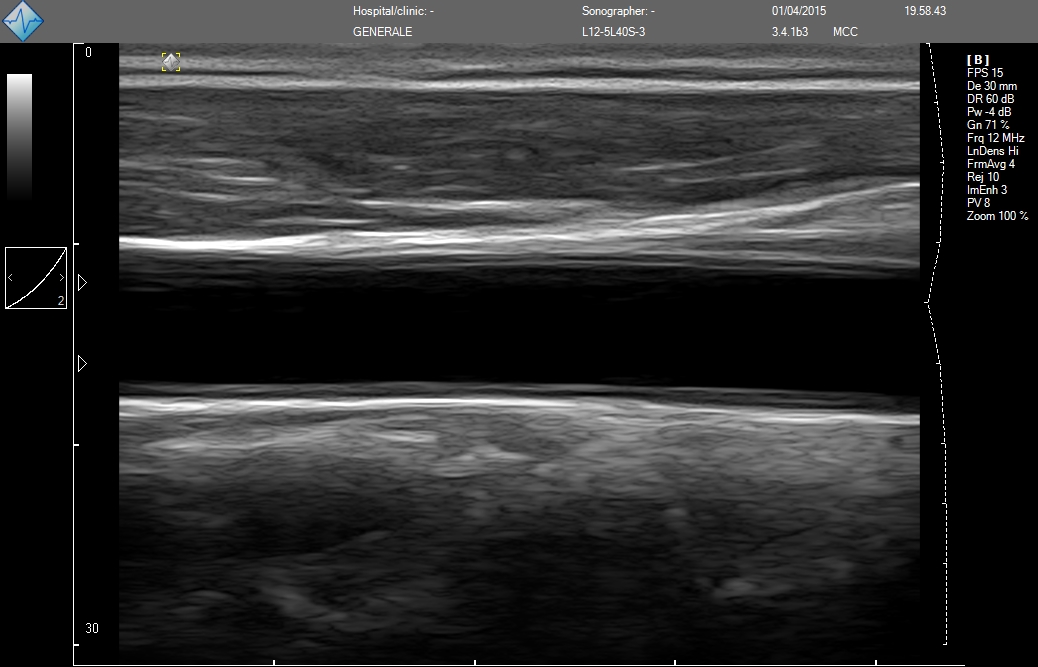

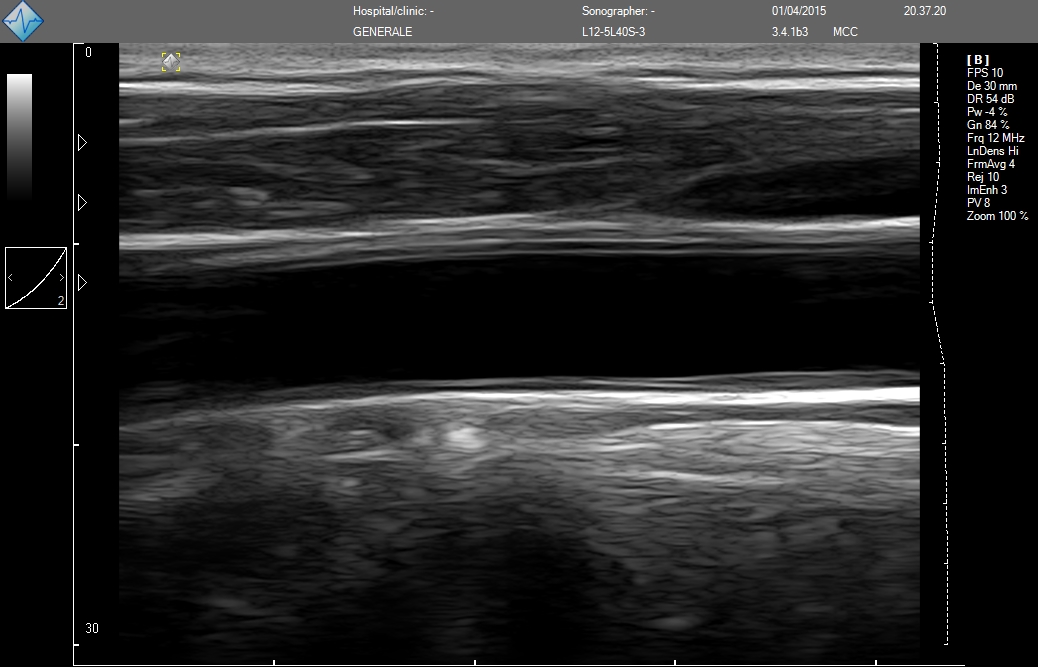

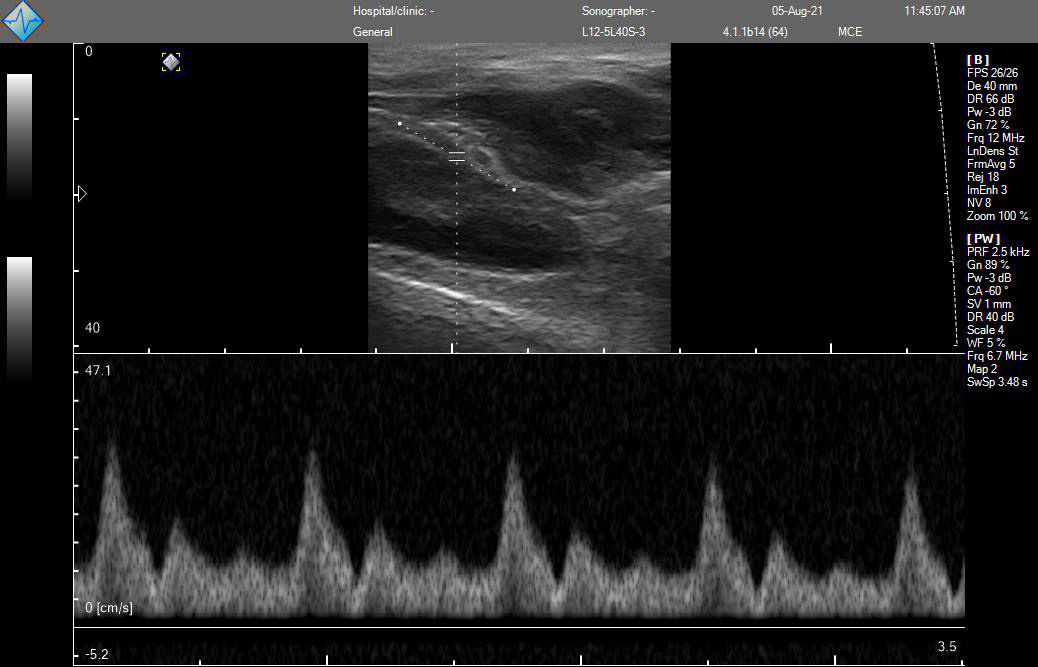

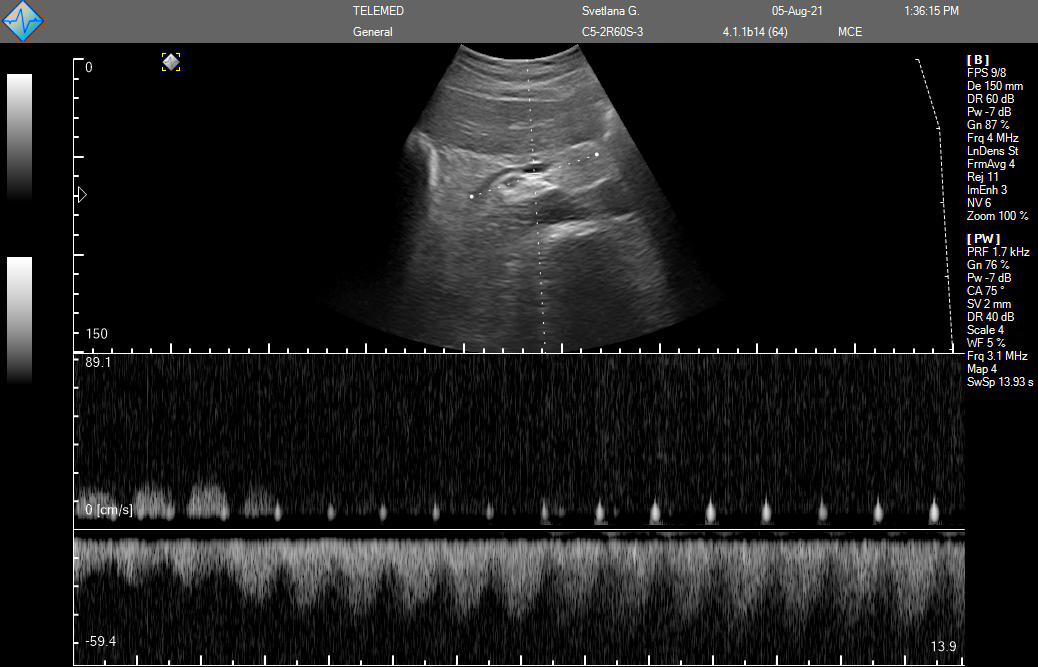

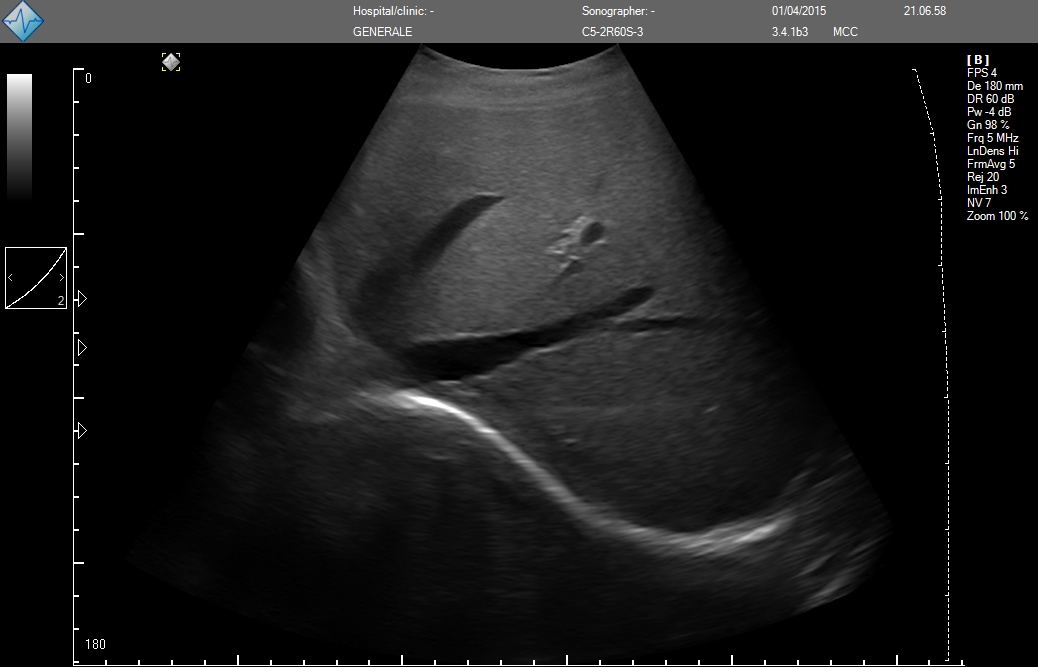

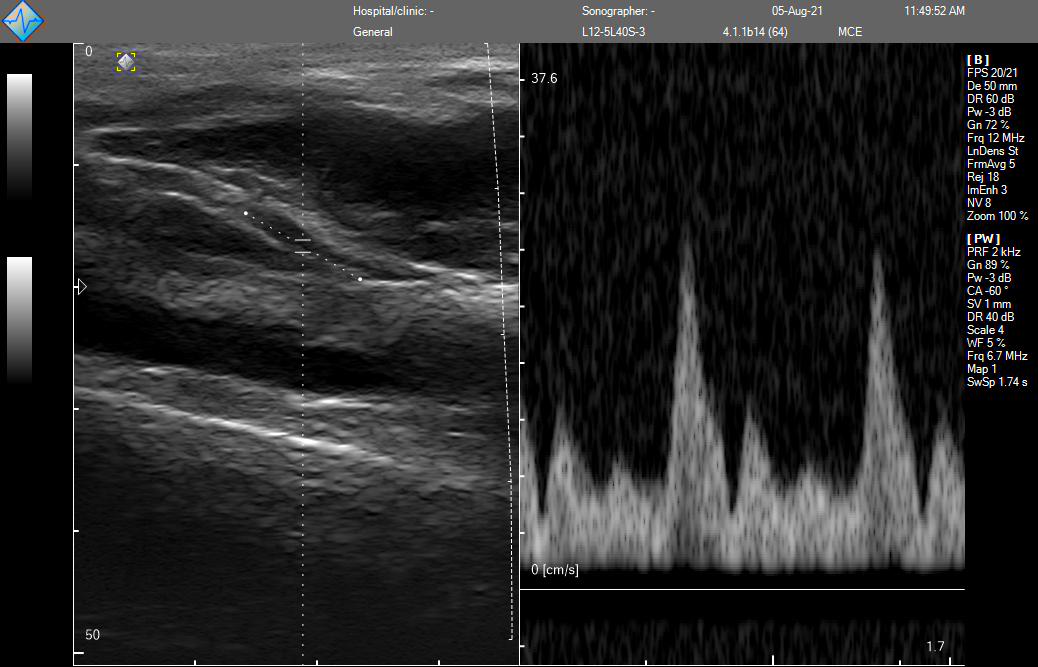

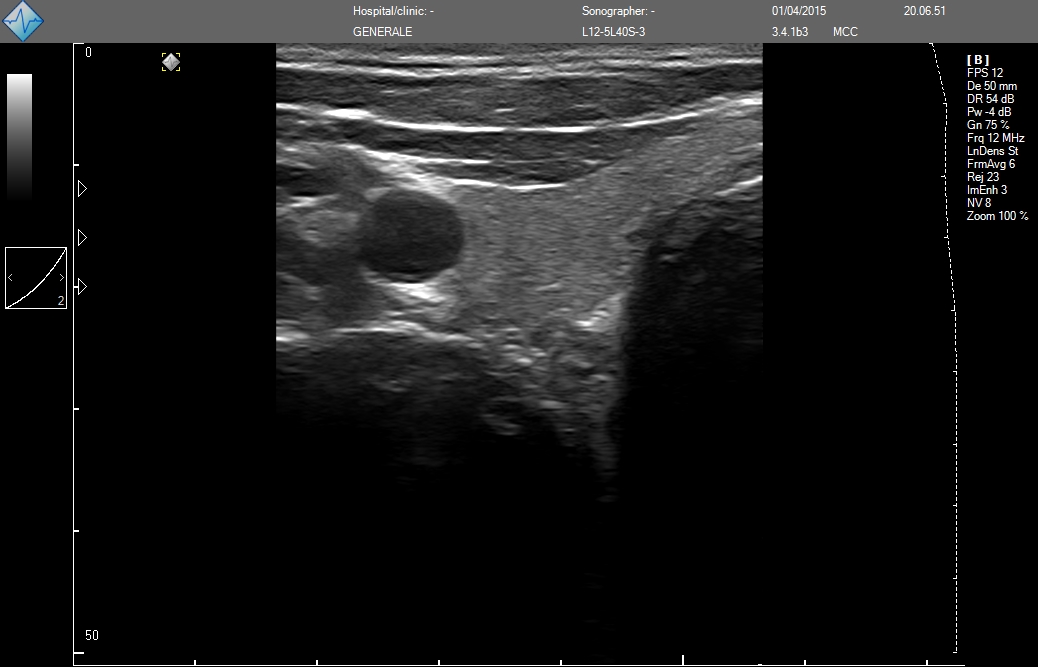

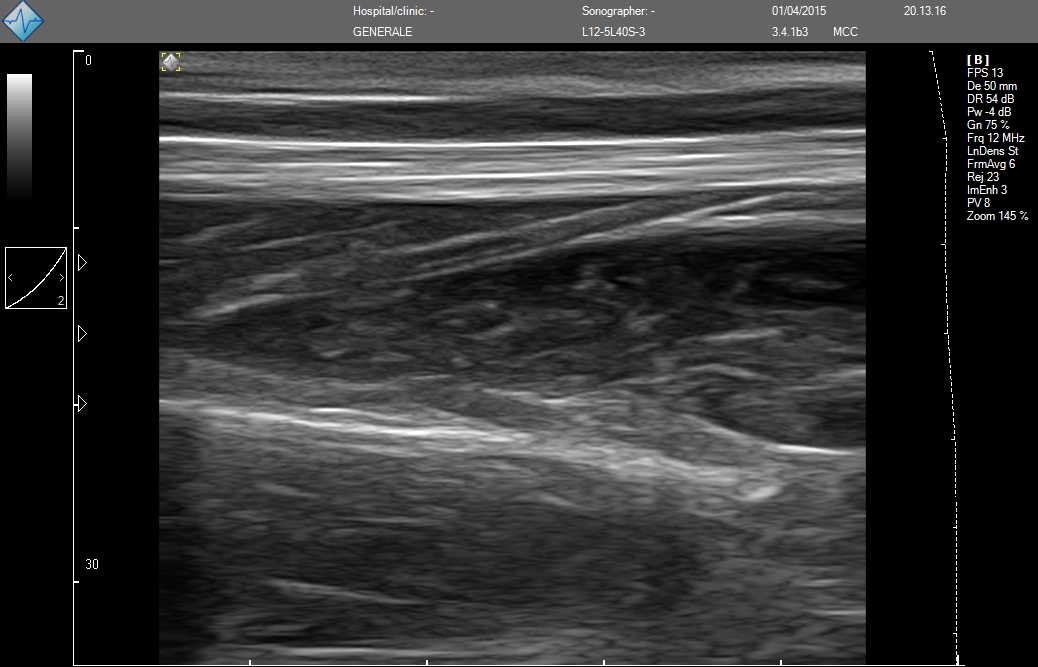

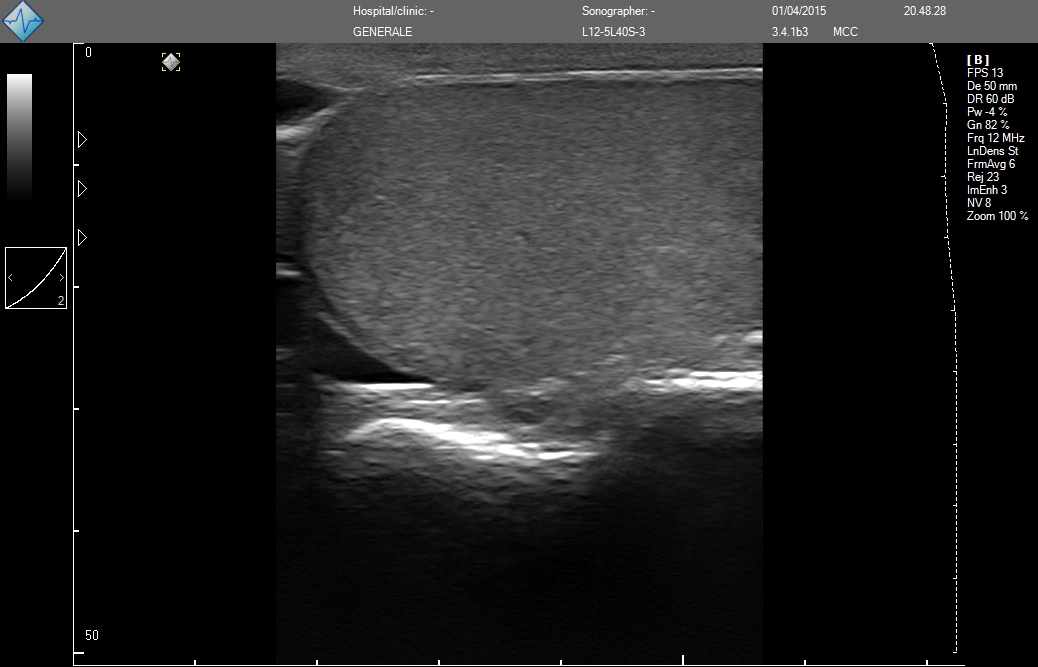

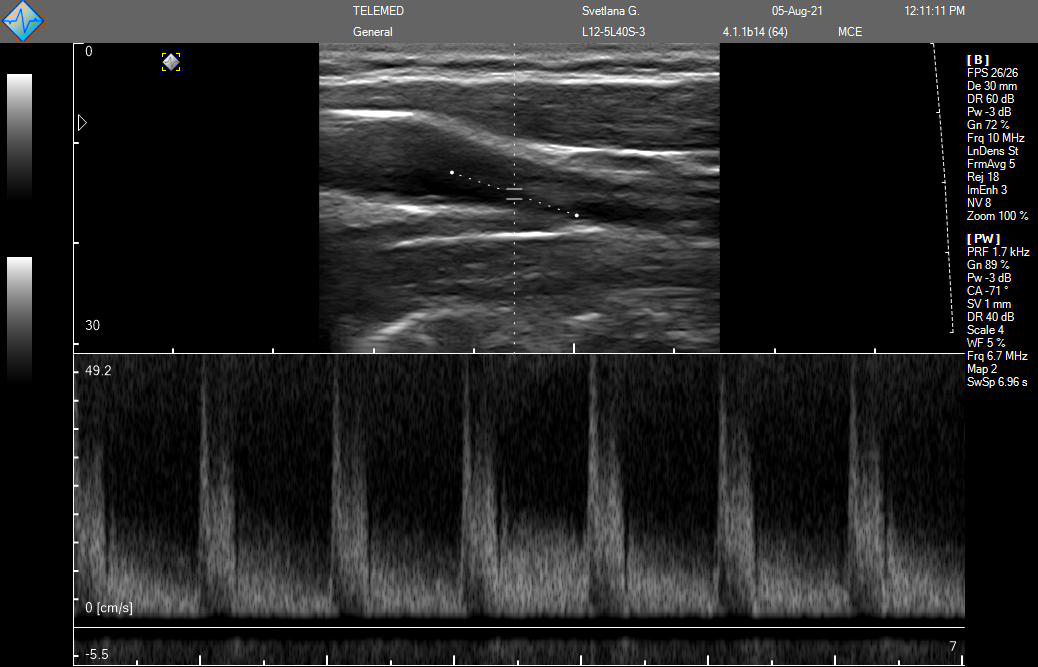

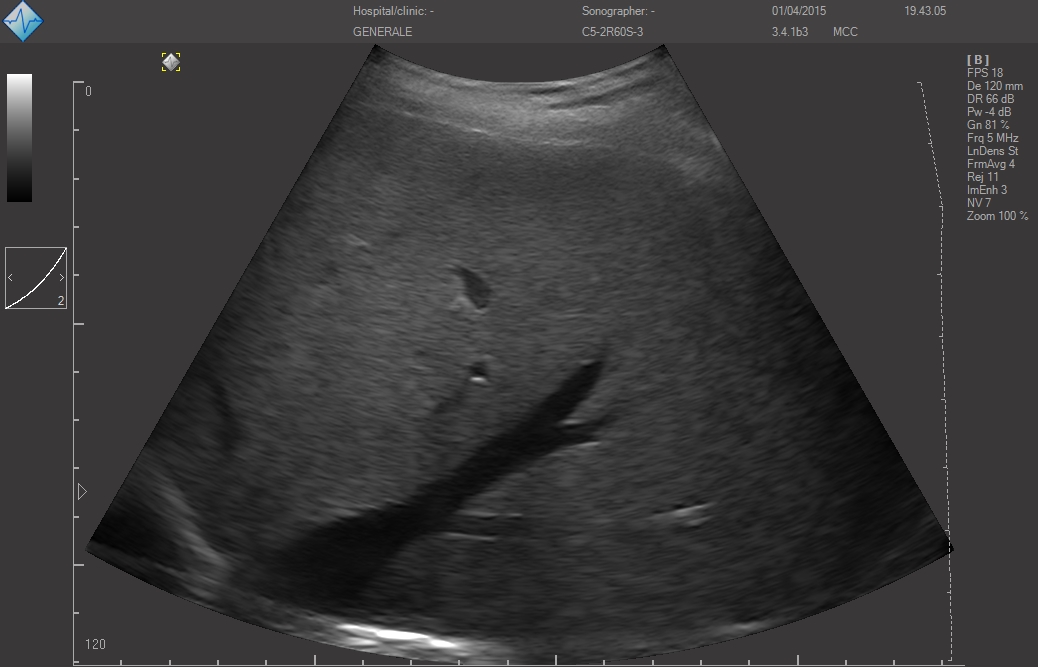

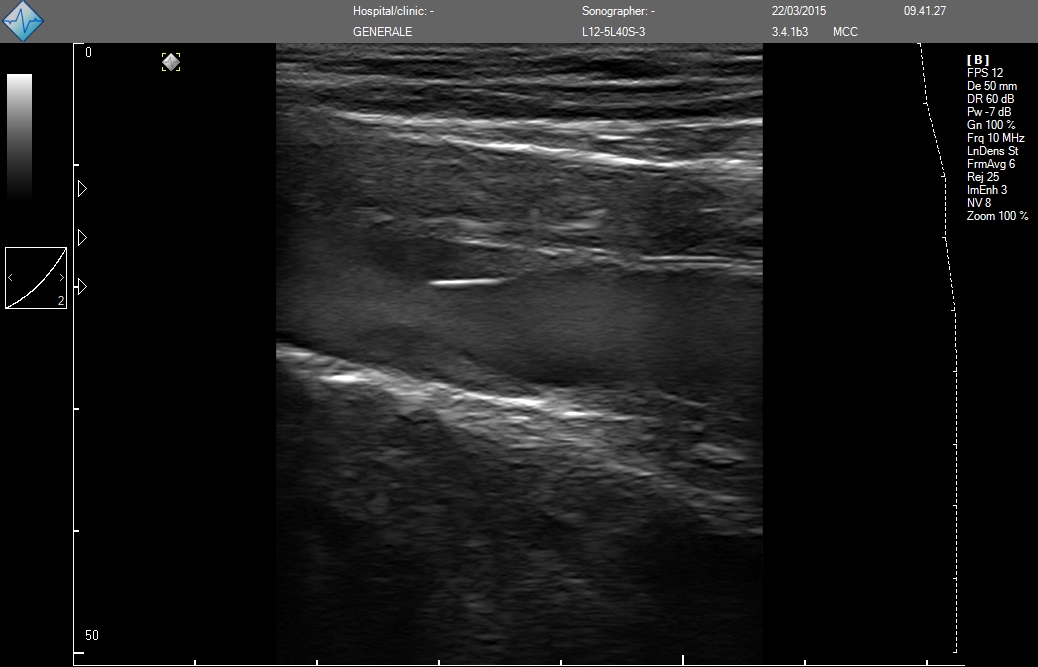

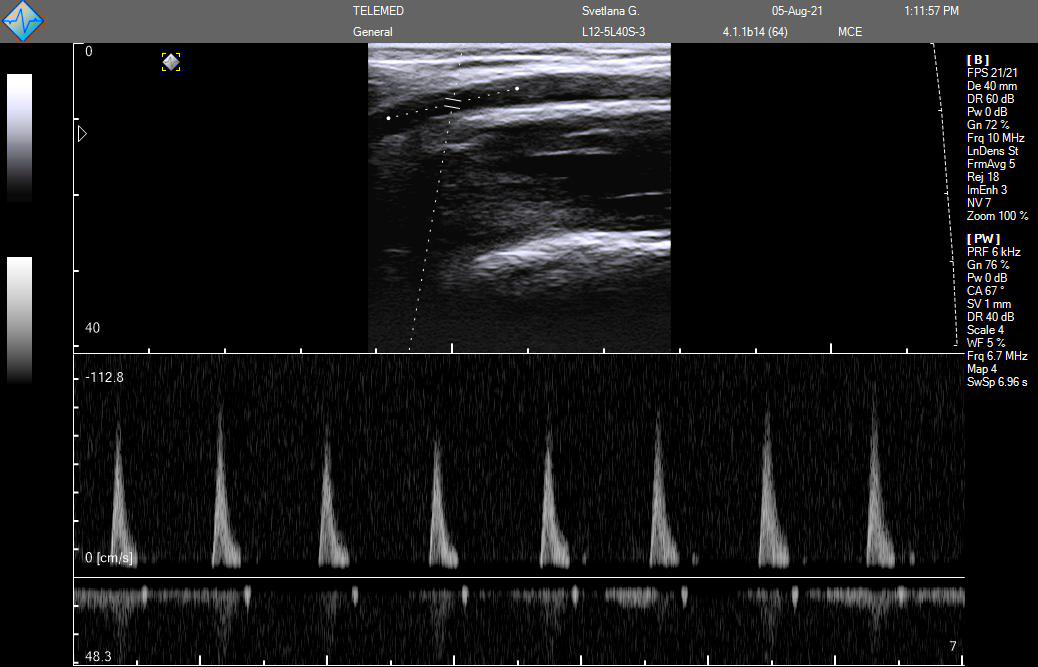

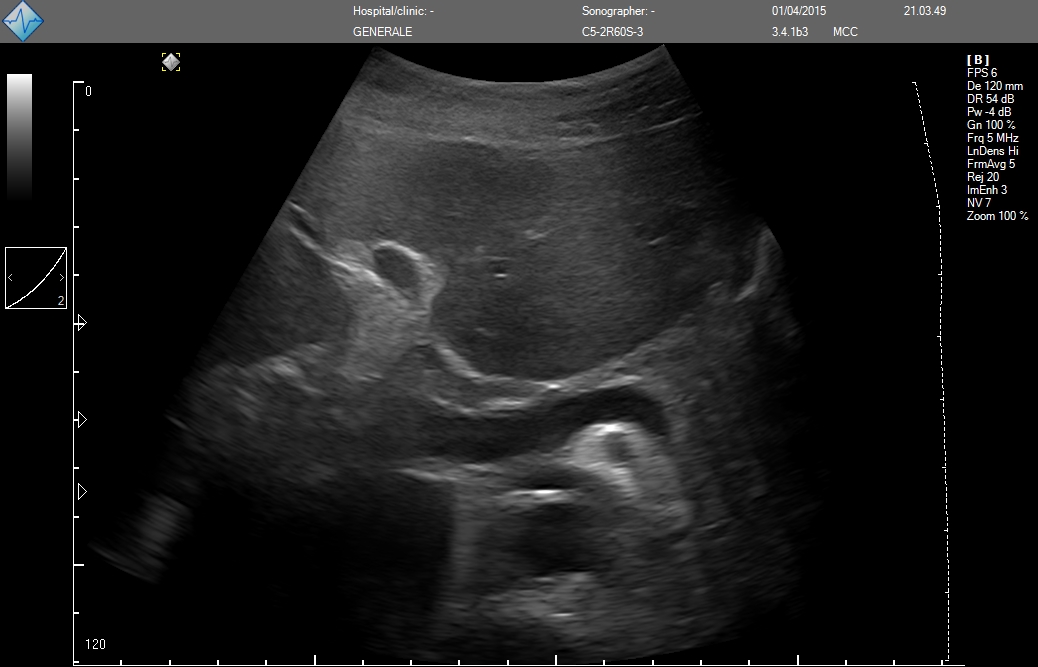

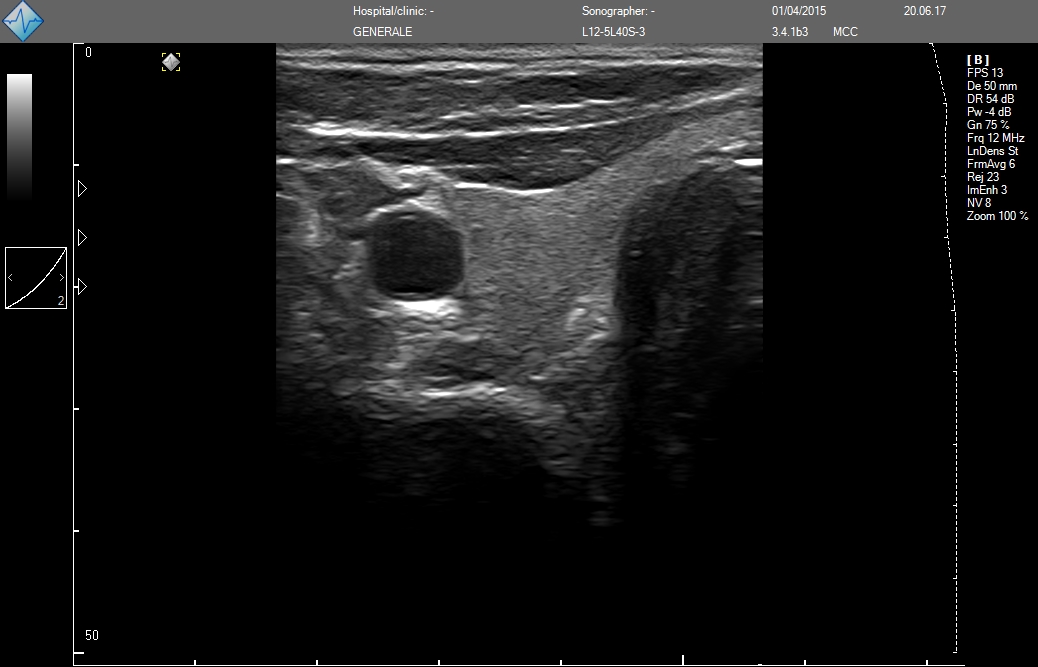

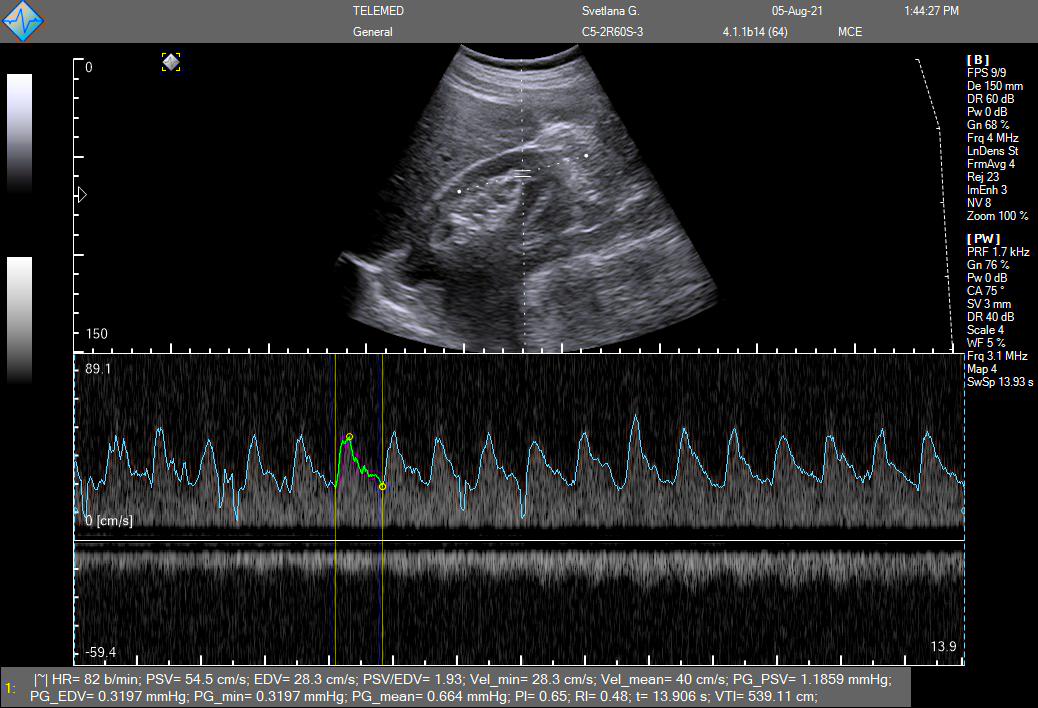

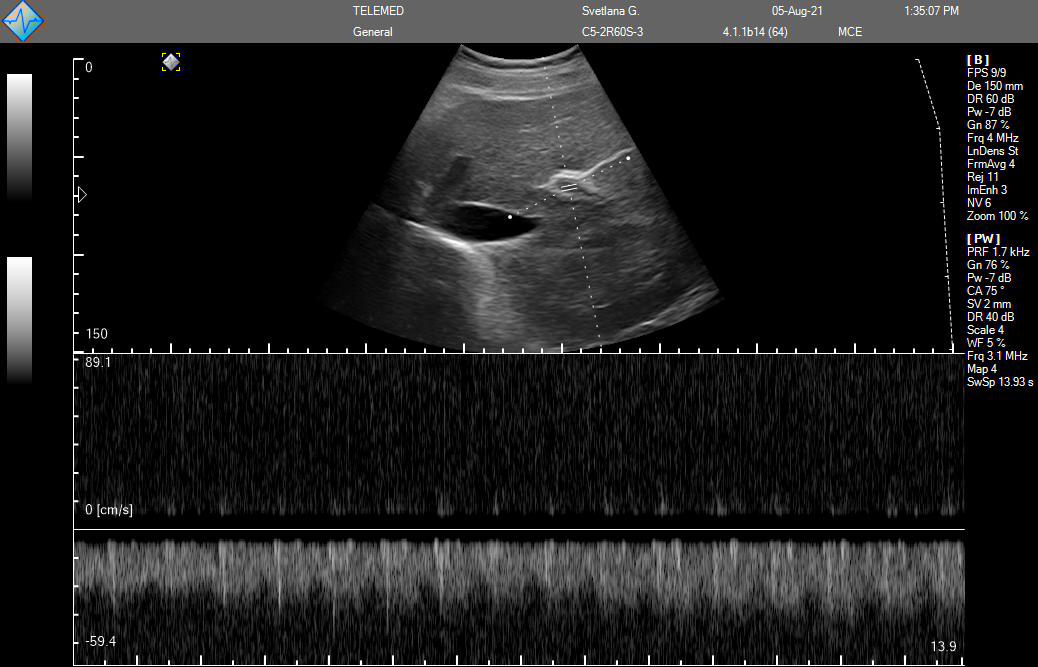

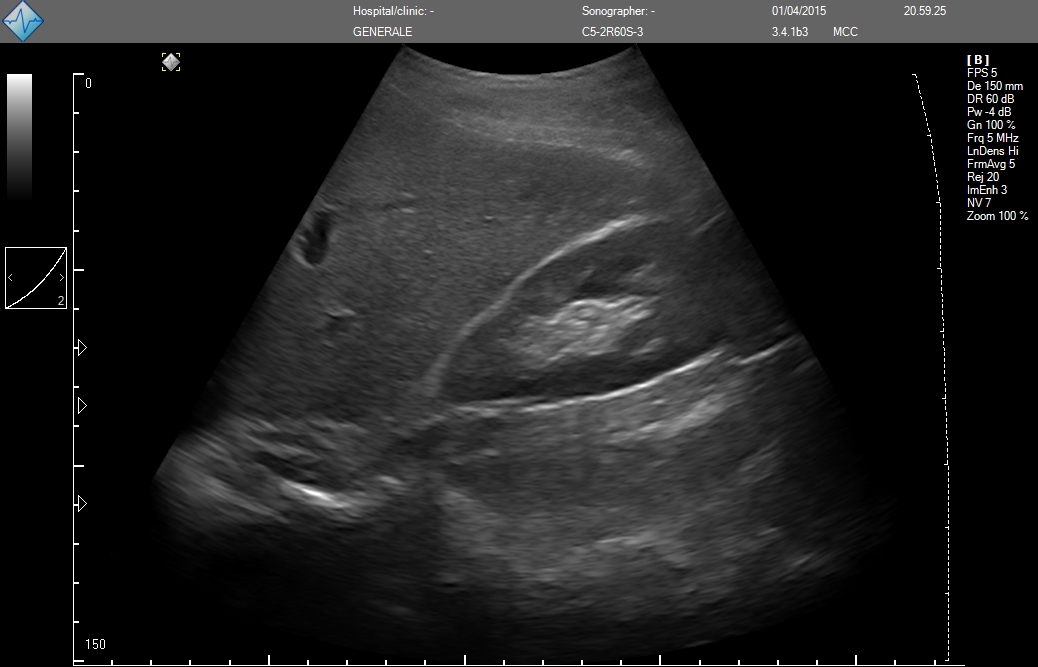

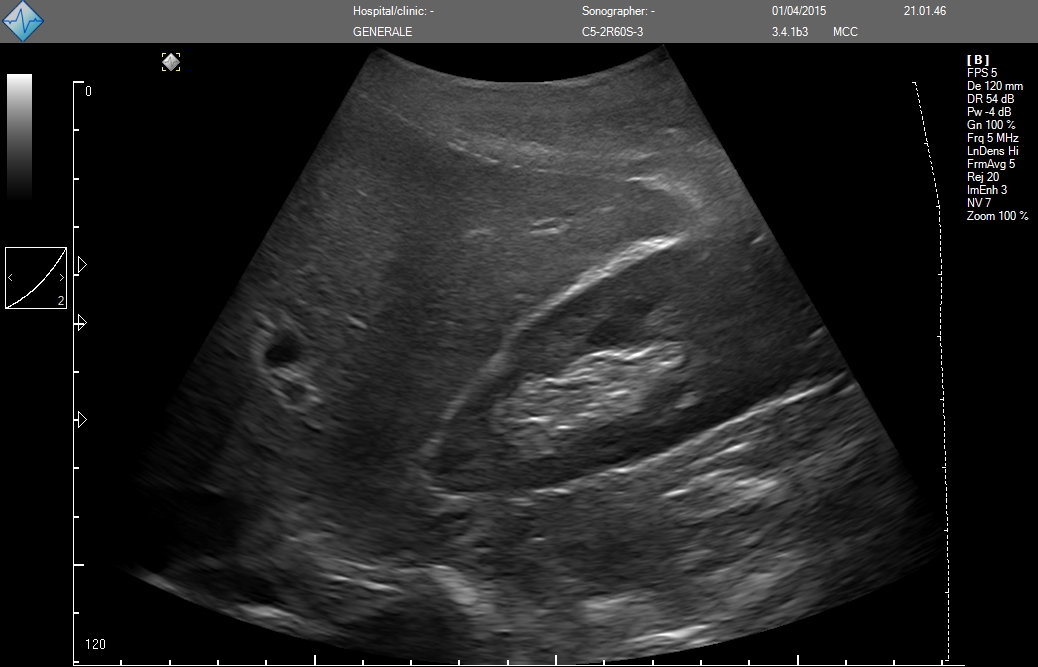

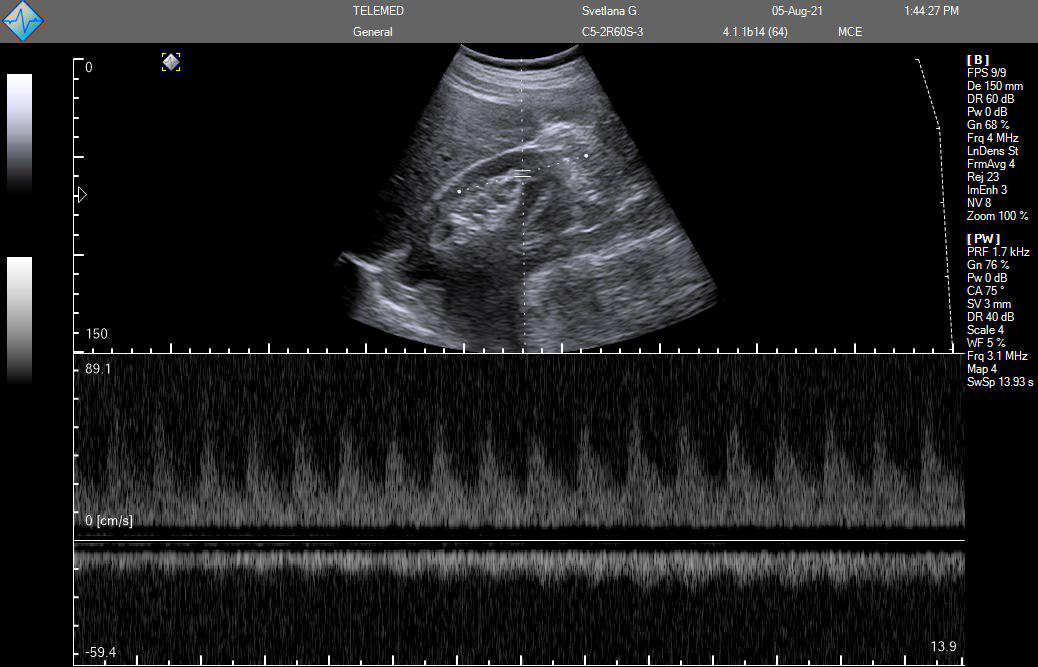

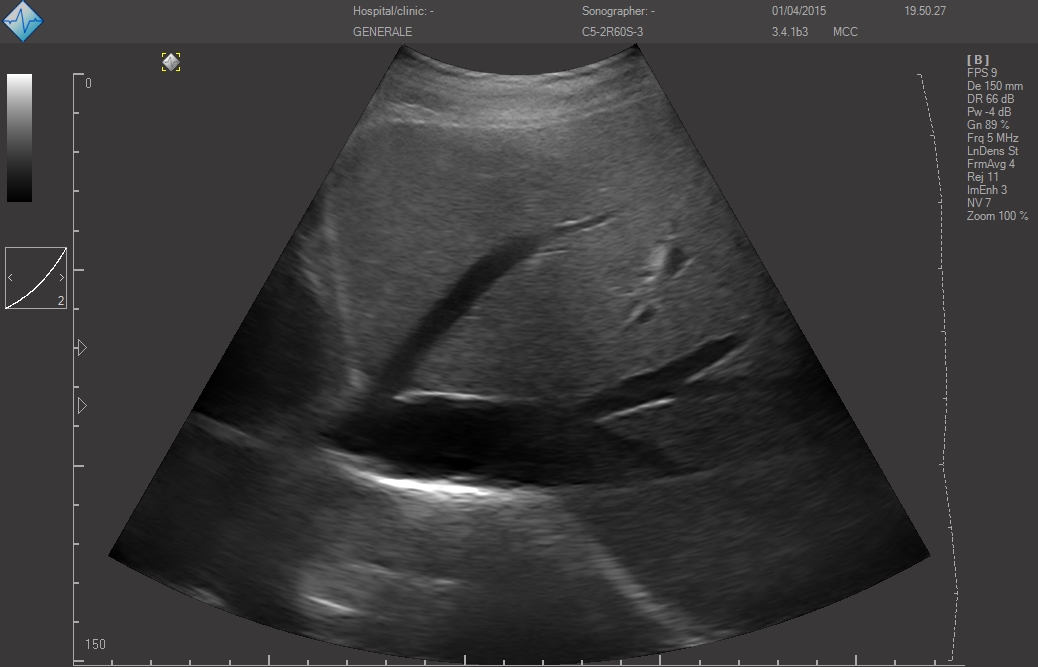

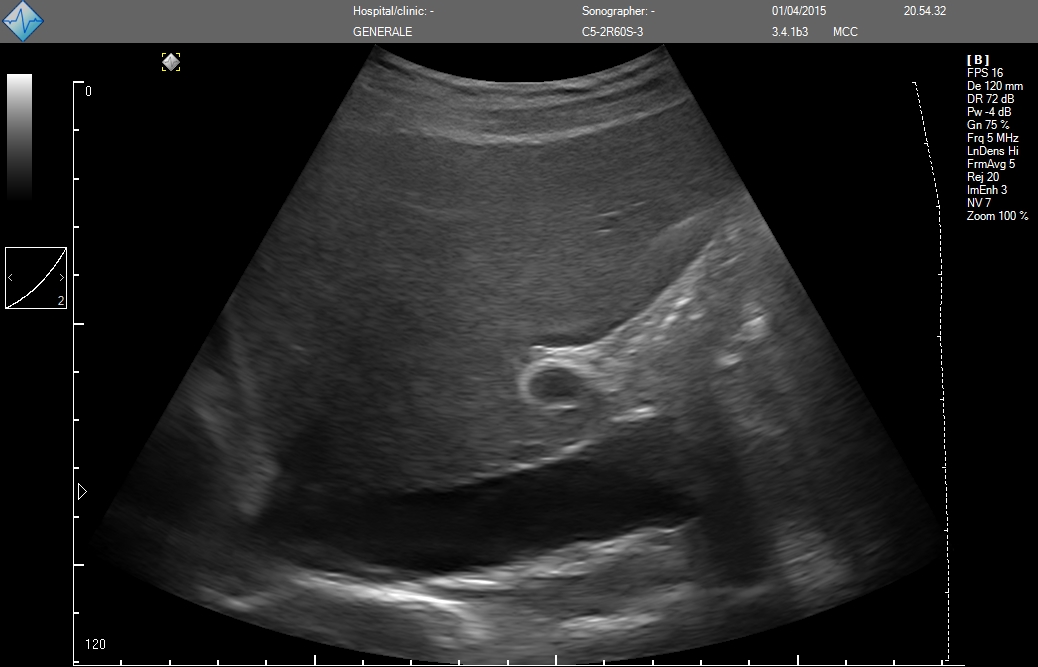

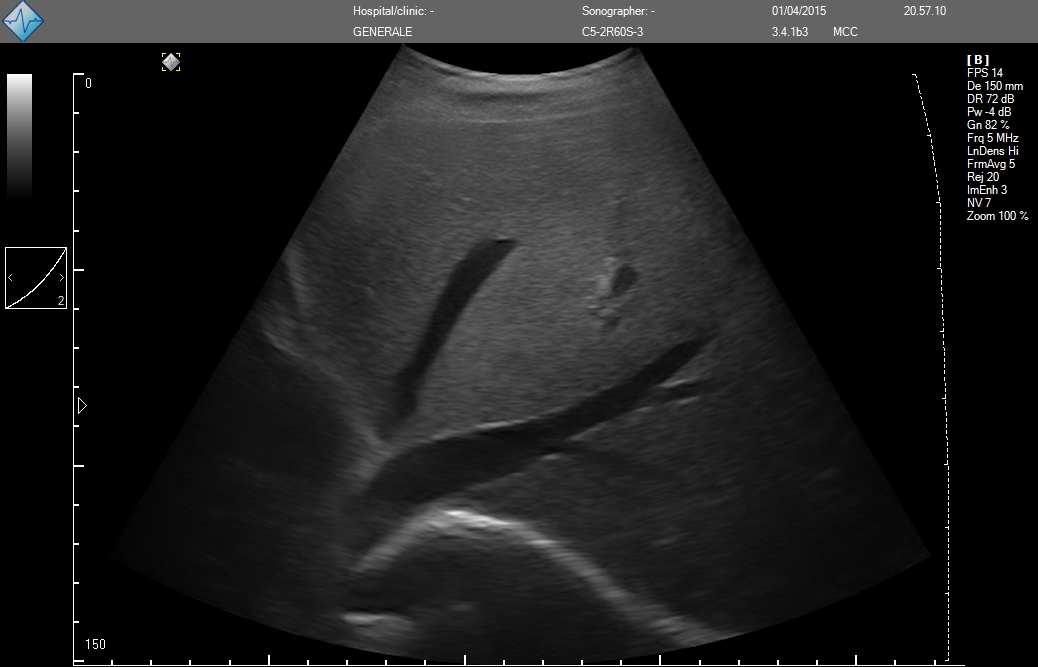

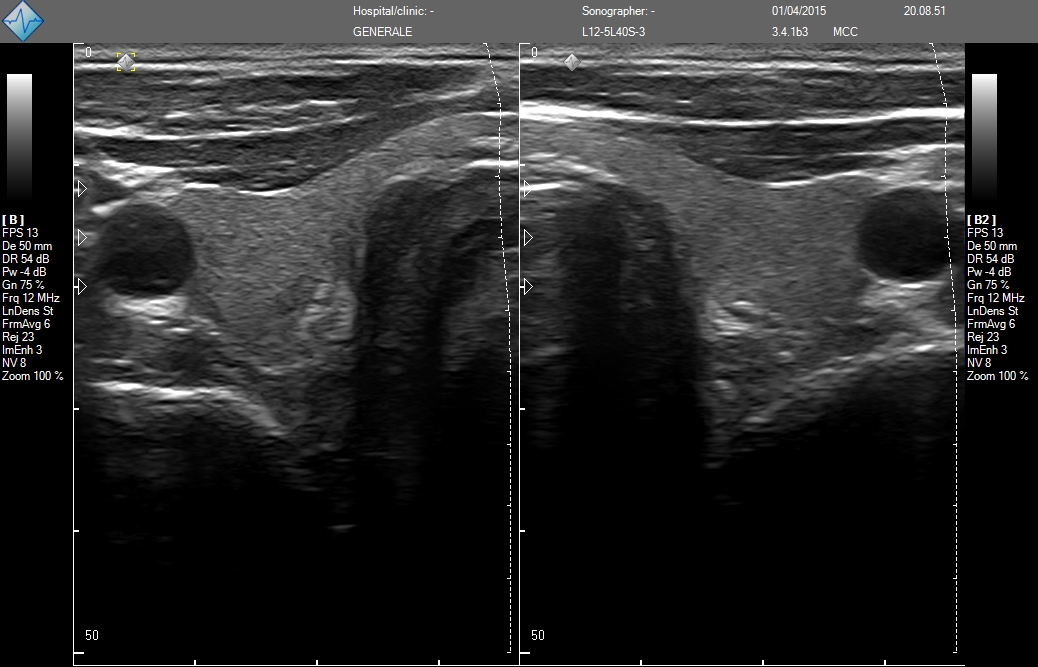

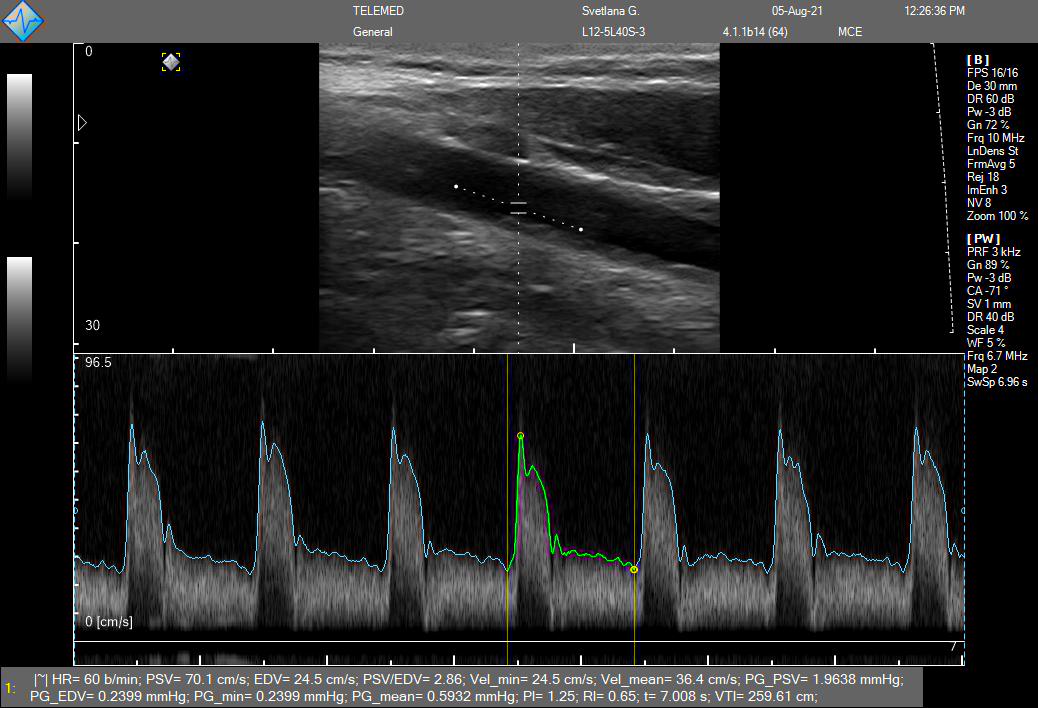

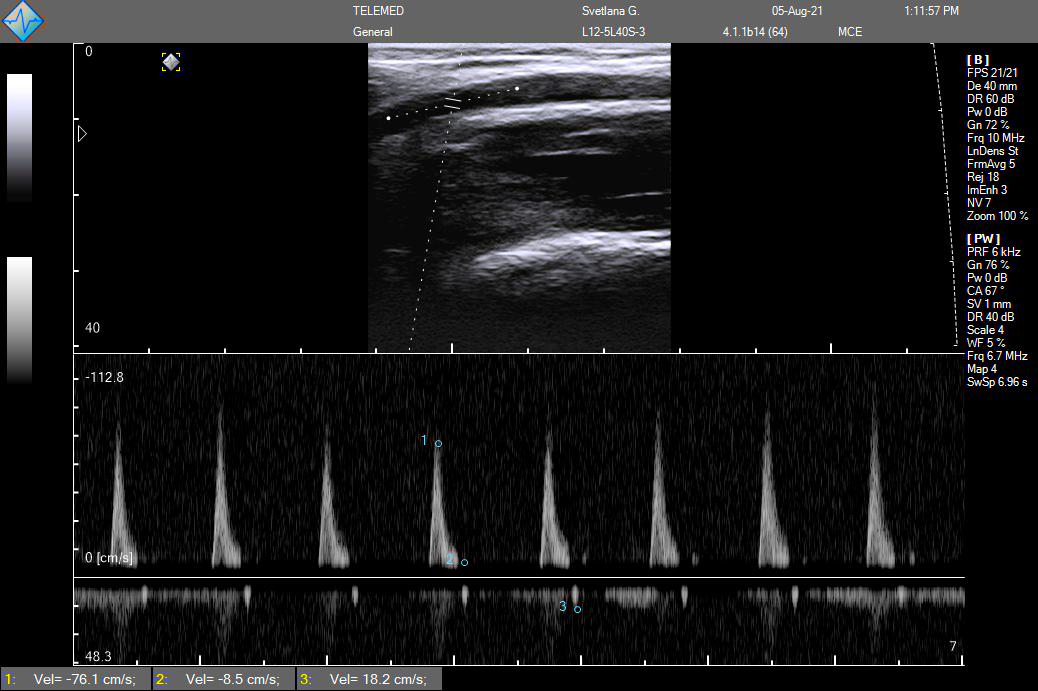

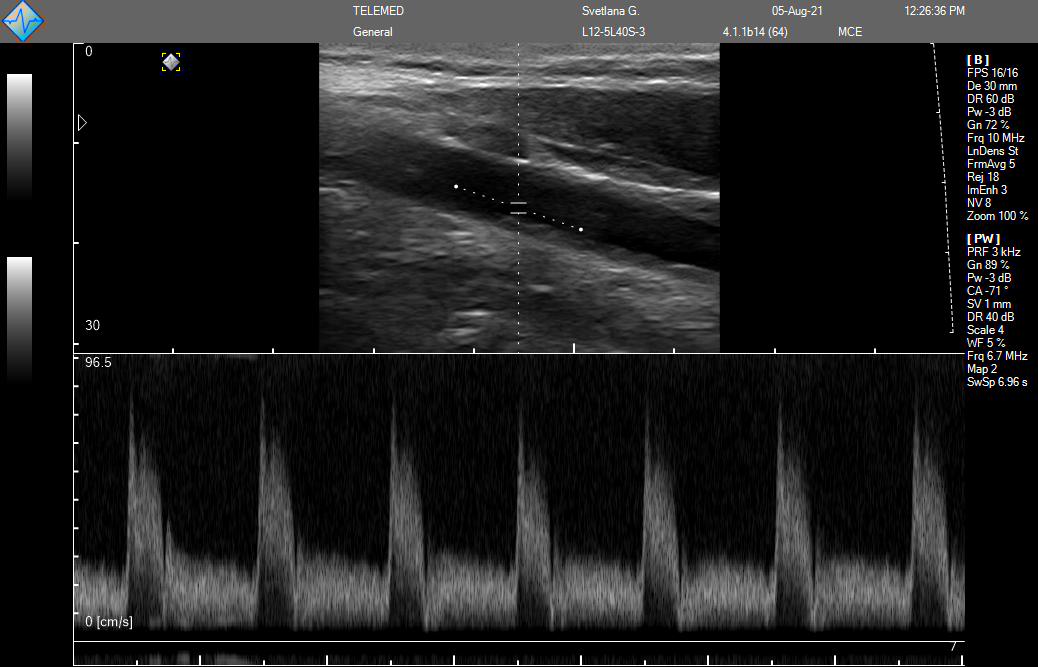

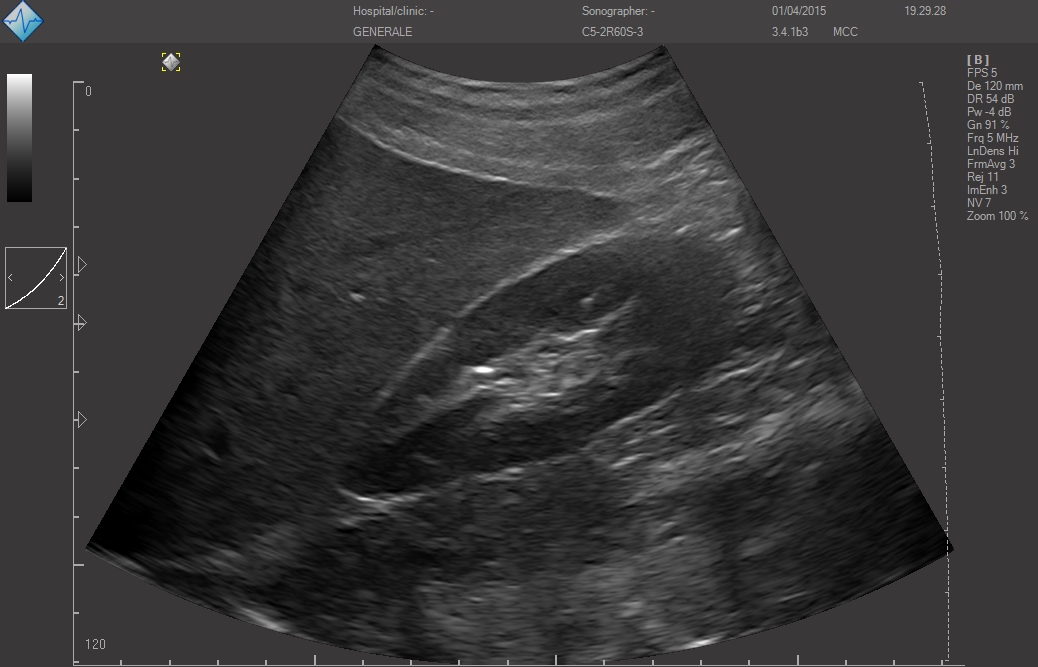

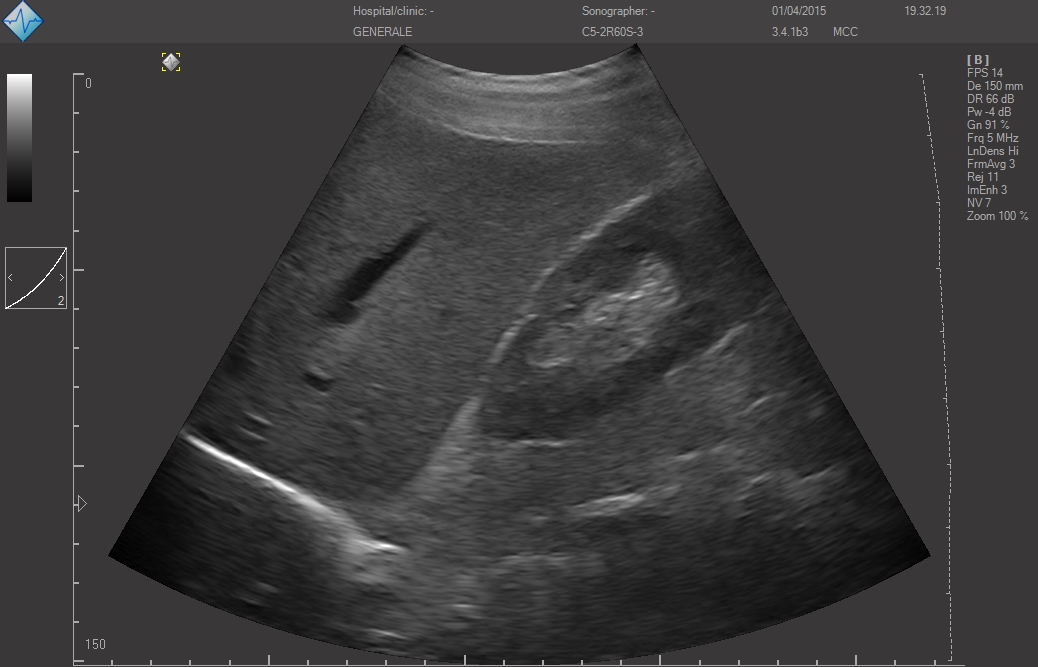

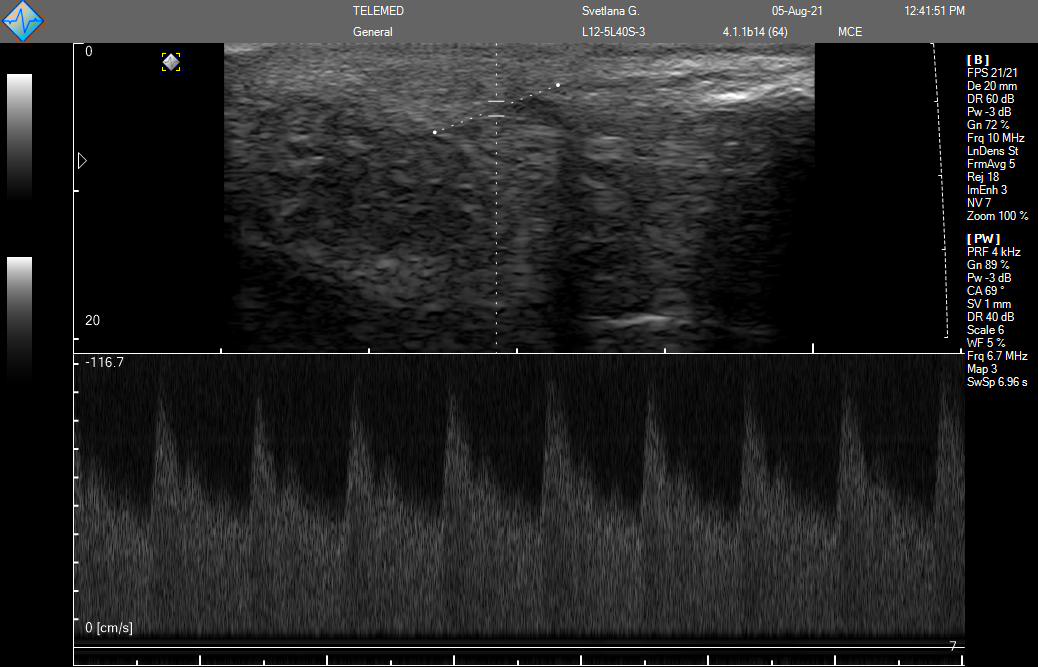

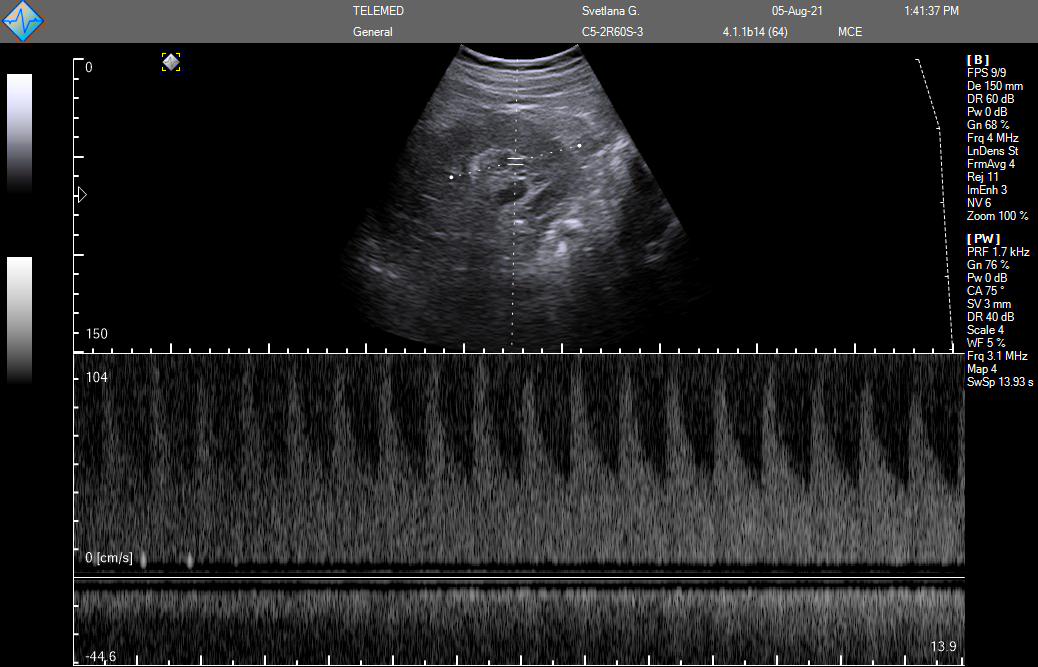

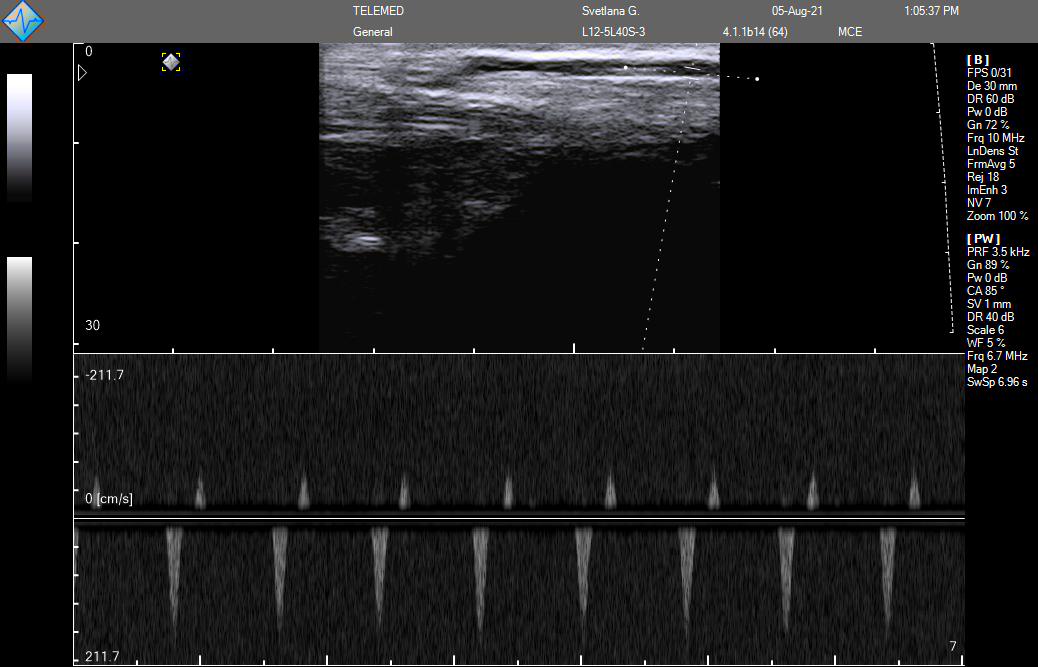

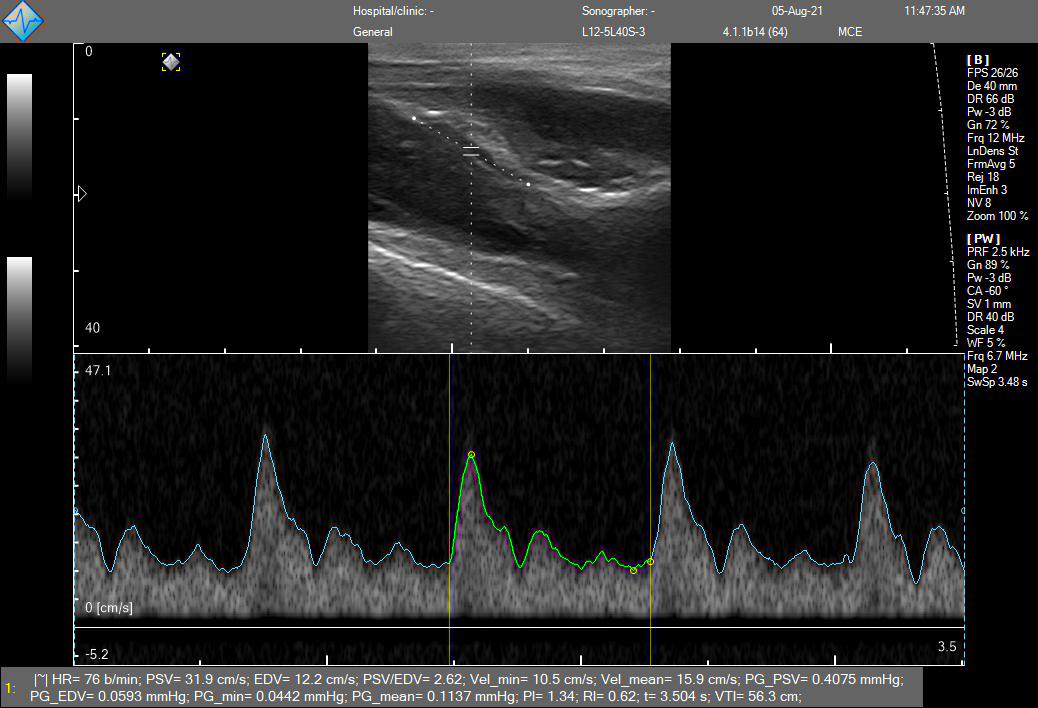

Ultrasound images
More MicrUs ultrasound video/images you can see here.
